· 尺寸：1/2"~4"（DN15∽DN100）
· 直接安装执行机构的平台设计
· 防爆中轴设计
· 外壳厚度ANSI B16.34Class 300
· 阀体：ASTM A-351Gr.CF8M (DIN 1.4408)
· 球体：SS316
· 阀杆：SS316
· 密封圈：PTFE
· 连接方式：T卡箍连接
· 工作压力：1/2"~2" 1000psi、 2-1/2"~4" 8000psi
· 可提供PTFE中空填充垫圈
· 可安装：1.气动头 2.电磁阀 3.限位开关 4.定位器

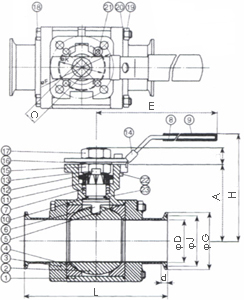

| SIZE | A | B | C | φD | d | E | φF | G | H | H3 |
| 1/2" | 42.1 | 8.7 | 9.0 | 9.4 | 9.3 | 140.0 | 42.0 | 25.0 | 77.0 | 171.1 |
| 3/4" | 48.0 | 8.5 | 9.0 | 15.7 | 9.3 | 140.0 | 42.0 | 25.0 | 83.0 | 123.0 |
| 1" | 56.6 | 11.4 | 11.0 | 22.2 | 11.7 | 165.0 | 50.0 | 50.4 | 95.0 | 155.5 |
| 1-1/2" | 77.5 | 13.9 | 14.0 | 34.9 | 12.0 | 185.0 | 70.0 | 50.4 | 127.0 | 187.0 |
| 2" | 85.2 | 13.9 | 14.0 | 47.5 | 13.2 | 185.0 | 70.0 | 63.9 | 134.0 | 194.9 |
| 2-1/2" | 108.7 | 16.8 | 17.0 | 60.3 | 15.5 | 260.0 | 102.0 | 77.4 | 166.0 | 217.5 |
| 3" | 117.7 | 16.8 | 17.0 | 73.0 | 15.5 | 260.0 | 102.0 | 90.9 | 176.0 | 251.5 |
| 4" | 132.5 | 17.8 | 17.0 | 97.4 | 15.5 | 260.0 | 102.0 | 118.9 | 190.0 | 279.4 |
| SIZE | H4 | φJ | φK | L | IS052211 | VALVE TORQUE(Nm) | ACTUATOR | ACTUATOR | AIR PRESSURE |
| 1/2" | 140.0 | 19.0 | 36.0 | 89.1 | F03-F04 | 7.5 | 32DA | 52SR05 | 80PSI |
| 3/4" | 148.6 | 19.0 | 36.0 | 101.6 | F03-F04 | 10.0 | 32DA | 52SR05 | 80PSI |
| 1" | 181.8 | 43.5 | 42.0 | 114.5 | F04-F05 | 11.0 | 52DA | 63SR03 | 80PSI |
| 1-1/2" | 224.7 | 43.5 | 50.0 | 140.1 | F04-F05 | 30.0 | 63DA | 85SR05 | 80PSI |
| 2" | 238.9 | 56.0 | 50.0 | 159.0 | F05-F07 | 40.0 | 75DA | 85SR05 | 80PSI |
| 2-1/2" | 275.5 | 70.6 | 70.0 | 174.0 | F07-F10 | 58.0 | 85DA | 100SR02 | 80PSI |
| 3" | 320.1 | 83.3 | 70.0 | 193.2 | F07-F10 | 90.0 | 100DA | 100SR02 | 80PSI |
| 4" | 374.0 | 110.3 | 70.0 | 226.0 | F07-F10 | 90.0 | 100DA | 12SR02 | 80PSI |
| 序号 | 零件名称 | 材质 | 数量 |
| 1 | 阀体 | CF8M | 1 |
| 2 | 球体 | SS316 | 1 |
| 3 | 阀盖 | CF8M | 2 |
| 4 | 密封圈 | PTFE/RTFE | 2 |
| 5 | 阀杆密封圈 | PTFE | 2 |
| 6 | 阀杆 | SS316 | 1 |
| 7 | 阀杆填料 | PTFE+PTFE.25%GF | 1SET |
| 8 | 手柄 | SS304 | 1 |
| 9 | 手柄套 | PLASTIC | 1 |
| 10 | 止推垫圈 | PTFE | 1 |
| 11 | 压盖垫片 | SS304 | 1 |
| 12 | 盘形垫片 | SS301 | 1SET |
| 13 | 手柄锁片 | SS304 | 1 |
| 14 | 挂锁装置 | SS304 | 1 |
| 15 | 阀杆螺母 | SS304 | 1 |
| 16 | 阀杆垫片 | SS304 | 1 |
| 17 | 手柄螺母 | SS304 | 1 |
| 18 | 螺栓 | SS304 | 4-6 |
| 19 | 螺栓螺母 | SS304 | 4-12 |
| 20 | 螺栓垫片 | SS304 | 4-12 |
| 21 | 定位销 | SS304 | 1 |
| 22 | 螺母 | SS304 | 1 |
| 23 | O形圈 | VITON | 1 |
| 24 | 螺栓 | SS304 | 4 |
| 25 | 气动头 | ALUMINUM | 1 |
