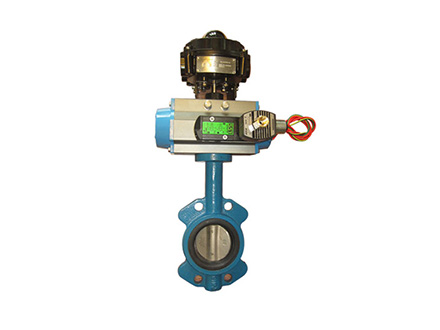

· 尺寸：2"~24"（DN50~DN600）
· 结构长度尺寸规范符合ISO5752表5
· ISO5211气动安装支架
· 设计符合：ANSI 125/150 、BS 10Talbe E 、BS 10Talbe D、JIS 10K、DIN PN 10/16
· 可安装：1.气动头 2.电磁阀 3.限位开关 4.定位器

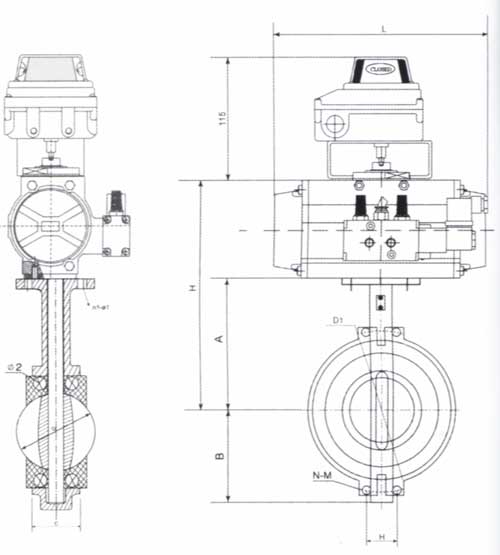

| SIZE | DN | A | A* | B | C | D | L | D1 | n1-Ø1 | Ø2 | W(Kg) | ACTUATOR | H |
| 2" | 50 | 161 | 124 | 80 | 42 | 52.9 | 139.5 | 125 | 4-6.7 | 12.5 | 3.8 | 52DA | 250.5 |
| 2-1/2" | 65 | 175 | 134 | 89 | 44.7 | 64.5 | 162 | 145 | 4-6.7 | 12.5 | 4.5 | 63DA | 275.5 |
| 3" | 80 | 181 | 141 | 84 | 45.2 | 78.8 | 162 | 160 | 4-6.7 | 12.6 | 4.7 | 63DA | 281.5 |
| 4" | 100 | 200 | 156 | 114 | 52.1 | 104 | 207 | 160 | 4-10.3 | 15.77 | 9.0 | 75DA | 317 |
| 5" | 125 | 213 | 168 | 127 | 54.4 | 123.3 | 237.5 | 210 | 4-10.3 | 18.92 | 10.9 | 85DA | 341 |
| 6" | 150 | 226 | 184 | 139 | 55.8 | 155.6 | 271.5 | 240 | 4-10.3 | 18.92 | 14.2 | 100DA | 367.5 |
| 8" | 200 | 260 | 213 | 175 | 60.6 | 202.5 | 328 | 295 | 4-14.3 | 22.10 | 18.2 | 115DA | 431.5 |
| 10" | 250 | 292 | 244 | 203 | 65.6 | 250.5 | 522 | 355 | 4-14.3 | 28.45 | 26.8 | 160DA | 510 |
| 12" | 300 | 337 | 283 | 242 | 76.9 | 301.6 | 522 | 410 | 4-14.3 | 31.60 | 40 | 160DA | 555 |
| 14" | 350 | 368 | - | 267 | 76.5 | 333.3 | 522 | 470 | 4-14.3 | 31.60 | 56 | 160DA | 586 |
| 16" | 400 | 400 | - | 309 | 86.5 | 389.6 | 575 | 525 | 4-20.6 | 33.15 | 96 | 200DA | 669 |
| 18" | 450 | 422 | - | 328 | 105.6 | 440.5 | 575 | 585 | 4-20.6 | 38.00 | 122 | 270DA | 641 |
| 20" | 500 | 480 | - | 361 | 131.8 | 491.6 | 672 | 650 | 4-20.6 | 41.15 | 202 | 270DA | 841 |
| 24" | 600 | 562 | - | 459 | 152 | 592.5 | 672 | 770 | 4-22.2 | 50.65 | 270 | 270DA | 923 |
|
NAME 名称 |
MATERIAL 材质 |
REMARK 备注 |
| BODY 阀体 | CAST IRON 碳钢 | |
| DUCTILE IRON 球墨铸铁 | ||
| DISC 阀板 | DUCTILE IRON 球墨铸铁 | |
| STAINLESS STEEL 不锈钢 | ||
| BRONZE 青铜 | ||
| STEM 阀杆 | STAINLESS STEEL 不锈钢 | |
| SEAT 密封圈 | NBR | -10-80℃ |
| EPDM | -20-120℃ | |
| NEOPRENE | 0-80℃ | |
| SILICON | -20-204℃ | |
| HYPALON | -20-135℃ | |
| VITON | -18-204℃ | |
| TAPER PIN 锥销 | STAINLESS STEEL 不锈钢 | |
| BOTTOM COVER 底盖 | CAST IRON 碳钢 | |
| BOTTOM COVER 底盖 | CAST IRON 碳钢 | |
| O-RING O形圈 | NBR | |
| GEAR BOX 齿轮箱 | CAST IRON 碳钢 | |
| HANDWHEEL 手轮 | CAST IRON 碳钢 | |
| ACTUATOR 气动头 | ALUMINUM | |
| 电磁阀 | ||
| 限位开关 |
