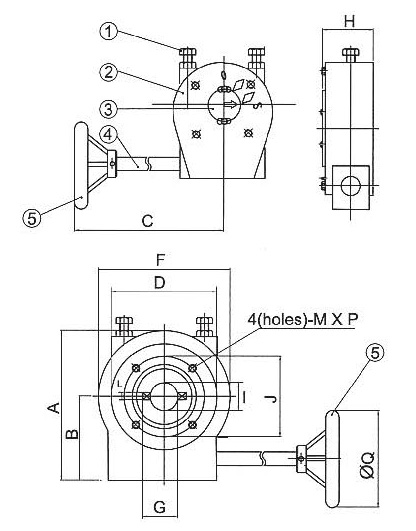

| NO. | 部件名称PART NAME | 材料 MATERIAL | 附注 | |
| JIS | ASTM | |||
| 1 | 调整螺丝 ADJUSTING SCREWS | S10C | AISI 1010 | |
| SS304 | A351-CF8 | |||
| 2 | 外壳 SHELL | FC200 | A126 CL-B | C.I |
| SS304 | A351-CF8 | SS304 | ||
| 3 | 蜗轮 WORM GEAR | FCD450 | A536 | D.I |
| 4 | 蜗杆 WORM SHAFT | S45C | AISI 1045 | |
| SS304 | A351-CF8 | |||
| 5 | 手轮 HANDLEWHEEL | FCD450 | A536 | |
| SS304 | A351-CF8 | |||
| 机型MODEL | 扭力 | 比例 RATIO | A | B | C | D | F | H | G | L | I | J | M | P | Q | 附注 |
| WGO-1 | 200 | 24:1 | 125 | 70 | 155 | 90 | 100 | 55 | 21.5 | 5.00-5.40X1 | 19 | 70 | 8 | 12 | 150 | Rt 2''-6'' |
| WGO-2 | 600 | 30:1 | 170 | 95 | 220 | 120 | 150 | 75 | 25 | 6.00-6.40X1 | 22 | 102 | 10 | 15 | 270 | Rt 8''-12'' |
| WGO-3 | 1200 | 40:1 | 195 | 110 | 230 | 135 | 170 | 85 | 36 | 10.00-10.40X1 | 32 | 108 | 12 | 20 | 280 | / |
| WGO-4 | 2400 | 50:1 | 250 | 145 | 260 | 198 | 210 | 95 | 39 | 10.00-10.40X1 | 35 | 160 | 16 | 25 | 320 | Rt 14''-18'' |
| WGO-5 | 4500 | 52:1 | 320 | 180 | 300 | 210 | 250 | 130 | 54 | 10.00-10.40X2 | 50 | 160 | 16 | 30 | 370 | Rt 20''-24'' |
