·阀座:可硬密封,也可软密封
SEAT:Soft Sealing and Metal Sealing
·阀芯材料:FEP/WCB/PFA
DISC:FEP/WCB/PFA
·温度范围:0OC-204OC
Temperature Range:0Oc-204OC
·公称压力:250PSI
WorkingPressure:250PSI
·等级:ANSI 150#
CLASS:ANSI 150#

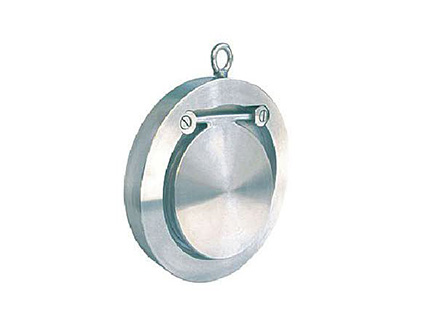

| NO. | PART NAME | MATERIAL | QTY | |
| 1 | BODY | ASTM A351 CF8M | 1 | |
| 2 | DISC | ASTM A351 CF8M | 1 | |
| 3 | RETAINER | SS316 | 2 | |
| 4 | BUSH | SS316 | 2 | |
| 5 | CLAPPER SEAL | NBR | 2 | |
| 6 | BODY SEAL | NBR | 1 | |
| 7 | EYE BOLT | SS316 | 1 |

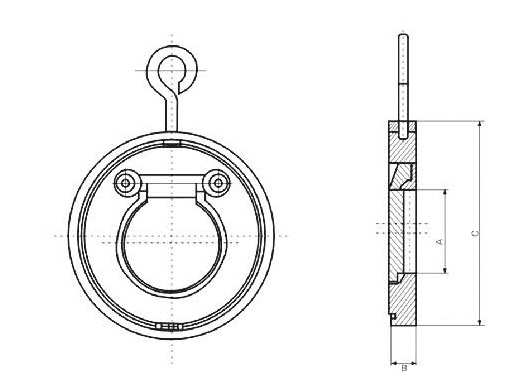

| 口径 | A | B | C | ||||
| PN10 | PN16 | BS10D | BS10E | ANSI#150 | |||
| 50 | 30 | 19 | 108 | 108 | 97 | 97 | 104 |
| 65 | 40 | 19 | 128 | 128 | 110 | 110 | 123 |
| 80 | 52 | 19 | 143 | 143 | 129 | 129 | 123 |
| 100 | 71 | 19 | 163 | 163 | 161 | 129 | 136 |
| 120 | 93 | 19 | 193 | 193 | 193 | 193 | 196 |
| 150 | 114 | 19 | 219 | 219 | 218 | 215 | 221 |
| 200 | 157 | 28.5 | 274 | 274 | 274 | 272 | 273 |
| 250 | 195 | 28.5 | 329 | 329 | 335 | 335 | 339 |
| 300 | 230 | 38.0 | 379 | 385 | 385 | 383 | 409 |
| 350 | 270 | 44.5 | 438 | 444 | 446 | 446 | 449 |
| 400 | 310 | 51.0 | 489 | 496 | 496 | 496 | 512 |
| 450 | 360 | 60.5 | 538 | 555 | 559 | 559 | 545 |
| 500 | 406 | 63.5 | 593 | 616 | 616 | 616 | 602 |
| 600 | 490 | 70.0 | 733 | 727 | 727 | 724 | 714 |
