· 尺寸:1/2"~6"（DN15~DN150）
· 直接安装执行机构的平台设计
· 防爆中轴设计
· 可提供L型和T型
· 阀体：ASTMA-351J Gr.CF8M (DIN1.4408)
· 球体：SS316
· 阀杆：SS316
· 密封圈：PTFE+15%GF
· 连接方式：螺纹连接

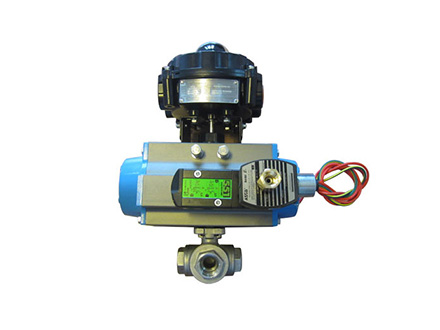

· 可安装：1.气动头 2.电磁阀 3.限位开关 4.定位器

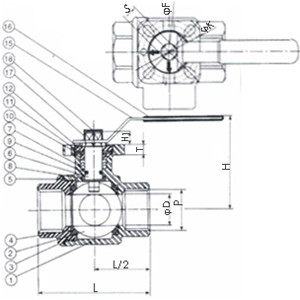

| SIZE | φD | L | H3 | H4 | T | S | P |
| 1/4" | 11.2 | 75.0 | 116.9 | 135.9 | 9.0 | 9.0 | DIN29991/4" |
| 3/8" | 12.5 | 75.0 | 116.9 | 135.9 | 9.0 | 9.0 | DIN29993/8" |
| 1/2" | 16.0 | 75.0 | 116.9 | 135.9 | 9.0 | 9.0 | DIN29991/2" |
| 3/4" | 20.0 | 80.0 | 119.0 | 141.3 | 9.0 | 9.0 | DIN29993/4" |
| 1" | 25.0 | 90.0 | 149.0 | 176.5 | 10.0 | 11.0 | DIN29991" |
| 1-1/4" | 32.0 | 110.0 | 155.0 | 188.3 | 10.0 | 11.0 | DIN29991-1/4" |
| 1-1/2" | 38.0 | 120.0 | 176.0 | 215.3 | 13.0 | 14.0 | DIN29991-1/2" |
| 2" | 50.8 | 140.0 | 185.0 | 233.5 | 13.0 | 14.0 | DIN29992" |
| SIZE | φF | φK | ISO5211 | VALVE TORQUE(Nm) | ACTUATOR | ACTUATOR | AIR PRESSURE |
| 1/4" | φ36.0 | φ42.0 | F03-F04 | 4.5 | 32DA | 52SR05 | 80PSI |
| 3/8" | φ36.0 | φ42.0 | F03-F04 | 4.5 | 32DA | 52SR05 | 80PSI |
| 1/2" | φ36.0 | φ42.0 | F03-F04 | 4.5 | 32DA | 52SR05 | 80PSI |
| 3/4" | φ36.0 | φ42.0 | F03-F04 | 7.9 | 32DA | 63SR05 | 80PSI |
| 1" | φ42.0 | φ50.0 | F04-F05 | 13.6 | 52DA | 63SR03 | 80PSI |
| 1-1/4" | φ42.0 | φ50.0 | F04-F05 | 15.8 | 52DA | 85SR03 | 80PSI |
| 1-1/2" | φ50.0 | φ70.0 | F05-F07 | 18.1 | 63DA | 85SR05 | 80PSI |
| 2" | φ50.0 | φ70.0 | F05-F07 | 31.6 | 63DA | 115SR05 | 80PSI |
| 序号 | 零件名称 | 材质 | 数量 |
| 1 | 阀体 | CF8M | 1 |
| 2 | 球体 | SS316 | 1 |
| 3 | 阀盖 | CF8M | 1 |
| 4 | 密封圈 | PTFE | 2 |
| 5 | 阀体密封圈 | PTFE | 1 |
| 6 | 阀杆 | SS316 | 1 |
| 7 | 阀杆填料 | PTFE | 1SET |
| 8 | 止推垫圈 | PTFE | 1 |
| 9 | O形圈 | VITON | 1 |
| 10 | 盘形垫片 | SS301 | 1SET |
| 11 | 压盖垫片 | SS304 | 1 |
| 12 | 压盖螺母 | SS304 | 1 |
| 13 | 气动头 | ALUMINUM | 1 |
| 14 | 螺栓 | SS304 | 4 |
| 15 | 手柄 | SS304 | 1 |
| 16 | 手柄套 | PLASTIC | 1 |
| 17 | 手柄垫片 | SS304 | 1 |
| 18 | 螺栓 | SS301 | 1 |
