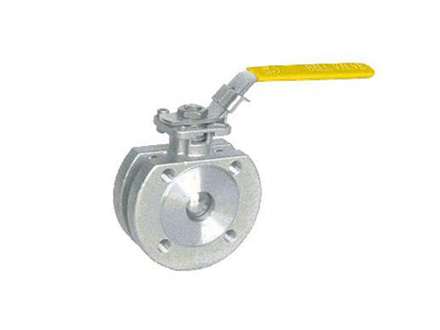

· 结构长度 FACE TO FACE DIMENSIONGB/T12221
· 法兰规范 END RLANGE DIMENSION CB/T9113
· 设计制造 DESIGN: ANSI B16.34
· 检查与测试 TEST:API598
· 带 ISO 5211平台座 WITH ISO5211 MOINTING PAD
· 精密铸造 INVESTMENT CASTING BODY
· 防爆轴心/全流量 BLOW - OUT PROCF STEM/FULL PORT
· 杠杆操作/齿轮操作 LEVER OPERATED/ GEAR CPERATED

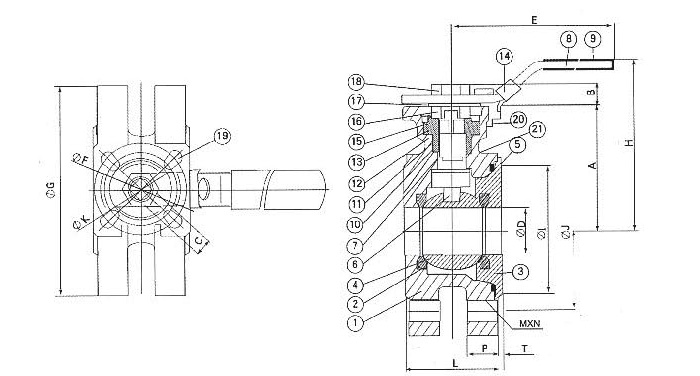

| NO. | 部件名称 | PART NAME | 材质 MATERIAL | 数量 QTY | |
| 1 | 阀体 | BODY | CF8M/WCB | 1 | |
| 2 | 球体 | BALL | SS316/SS304 | 1 | |
| 3 | 阀盖 | END CAP | CF8M/WCB | 1 | |
| 4 | 密封圈 | SEAT | PTFE/RTFE | 2 | |
| 5 | 阀体密封圈 | BODY SEAT | PTFE | 1 | |
| 6 | 阀杆 | STEM | SS316 | 1 | |
| 7 | 阀杆填料 | STEM PACKING | PTFE | 1SET | |
| 8 | 手柄 | HANDLE | SS304 | 1 | |
| 9 | 手柄套 | HANDAE COVER | PLASTIC | 1 | |
| 10 | 止推垫圈 | THRUST WASHER | PTFE | 1 | |
| 11 | 阀杆螺母 | STEM NUT | SS304 | 1 | |
| 12 | 阀杆垫圈 | STEM WASHER | SS304 | 1 | |
| 13 | 手柄螺母 | HANDLE NUT | SS304 | 1 | |
| 14 | 挂锁装置 | LOCKING PAD | SS304 | 1 | |
| 15 | 压盖垫片 | GLAND BUSH | PTFE+25%GF | 1 | |
| 16 | 压盖 | FOLLOWER | SS304 | 1 | |
| 17 | 盘型垫片 | BELLEVILLE WASHER | SS304 | 2 | |
| 18 | 止锁片 | TAB WASHER | SS304 | 1 | |
| 19 | 定位销 | STOP PIN | SS304 | 1 | |
| 20 | 定位螺母 | PIN NUT | SS304 | 1 | |
| 21 | O形圈 | O-RING | VITON | 1 |
| SIZE | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P | T | |||||||||
| PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | PN16 | PN40 | ||||||||
| 1/2" | 48.7 | 48.7 | 8.0 | 8.0 | 9.0 | 15.0 | 140.0 |
42.0 F04 |
80.7 | 80.7 | 56.7 | 45.0 | 45.0 | 65.0 | 65.0 | \ | 40.8 | M12 | M12 | 4 | 4 | 14.0 | 16.0 | 2.0 | 2.0 |
| 3/4" | 53.7 | 53.7 | 8.0 | 8.0 | 9.0 | 20.0 | 140.0 |
42.0 F04 |
98.6 | 99.6 | 61.7 | 58.0 | 58.0 | 75.0 | 75.0 | \ | 44.0 | M12 | M12 | 4 | 4 | 16.0 | 18.0 | 2.0 | 2.0 |
| 1" | 65.0 | 65.0 | 12.6 | 12.6 | 11.0 | 25.0 | 165.0 |
50.0 F05 |
115.0 | 115.0 | 77.6 | 68.0 | 68.0 | 85.0 | 85.0 |
42.0 F04 |
50.0 | M12 | M12 | 4 | 4 | 16.0 | 18.0 | 2.0 | 2.0 |
| 1-1/4" | 77.0 | 77.0 | 11.3 | 11.3 | 11.0 | 32.0 | 165.0 |
50.0 F05 |
140.0 | 140.0 | 88.3 | 78.0 | 78.0 | 100.0 | 100.0 |
42.0 F04 |
60.0 | M16 | M16 | 4 | 4 | 16.0 | 18.0 | 2.0 | 2.0 |
| 1-1/2" | 85.5 | 85.5 | 15.5 | 15.5 | 14.0 | 38.0 | 215.0 |
70.0 F07 |
150.0 | 150.0 | 103.0 | 88.0 | 88.0 | 110.0 | 110.0 |
50.0 F05 |
65.0 | M16 | M16 | 4 | 4 | 18.0 | 18.0 | 3.0 | 3.0 |
| 2" | 93.0 | 93.0 | 16.0 | 16.0 | 14.0 | 50.0 | 215.0 |
70.0 F07 |
165.0 | 165.0 | 111.0 | 102.0 | 102.0 | 125.0 | 125.0 |
50.0 F05 |
80.0 | M16 | M16 | 4 | 4 | 18.0 | 20.0 | 3.0 | 3.0 |
| 2-1/2" | 109.7 | 109.7 | 15.8 | 15.8 | 17.0 | 65.0 | 263.0 |
102.0 F10 |
185.0 | 185.0 | 125.5 | 122.0 | 122.0 | 145.0 | 145.0 |
70.0 F07 |
110.0 | M16 | M16 | 4 | 8 | 18.0 | 22.0 | 3.0 | 3.0 |
| 3" | 119.5 | 119.5 | 16.0 | 16.0 | 17.0 | 80.0 | 263.0 |
102.0 F10 |
200.0 | 200.0 | 135.5 | 138.0 | 138.0 | 160.0 | 160.0 |
70.0 F07 |
120.0 | M16 | M16 | 8 | 8 | 20.0 | 24.0 | 3.0 | 3.0 |
| 4" | 130.4 | 132.7 | 20.1 | 17.8 | 17.0 | 100.0 | 313.0 |
102.0 F10 |
220.0 | 235.0 | 150.5 | 158.0 | 162.0 | 180.0 | 190.0 |
70.0 F07 |
150.0 | M16 | M20 | 8 | 8 | 20.0 | 24.0 | 3.0 | 3.0 |
