· 非腐蚀性气体 NONCORROSIVE GAS,NG
· 腐蚀性气体 CORROSIVE GAS:CG
· 蒸汽 STEAM:S
· 熟水 HOT WATER:HW
· 非腐蚀性流体 NONCORROSIVE LIOUID:NL
· 腐蚀性流体 CORROSIVE LIOUID:CL

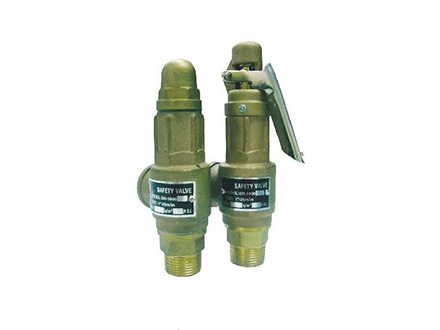

| NO. | ITEM | PART NAME |
| 1 | MAIN MATEFIIAL(OTHERS) | STAINLESS STEEL(CASTING) |
| 2 | WORKING MEDIUM | NG,CG,S,HW,NL,CL |
| 3 | WORKING TEMP | -198℃-225℃ |
| NO. | 部件名称 PART NAME | 材料 MATERIAL |
| 1 | 阀体 BODY | CASTING-BRONZE |
| 2 | 阀座 SEAT | FORGING-BRASS |
| 3 | 轴杆 SPINDLE | BRASS |
| 4 | 弹簧座 SPFING SEAT | BRASS |
| 5 | 阀瓣 DISC | FORGING-BRASS |
| 6 | 阀盖 CAP | CASTING-BRONZE |
| 7 | 弹簧 SPRING | STEEL |
| 8 | 调节螺母 ADJUST NUT | BRASS |
| 9 | 调节螺丝 ADJUST SCREW | BRASS |
| 10 | 把手 HANDEL | STEEL |
| 11 | 六角螺母 HEXAGON NUT | STEEL |
| 12 | 螺母 NUT | BRASS |
| 13 | 销 INSERT PIN | STEEL |
| 14 | 拉环 PING | STEEL |
| 15 | 十字螺丝 FIXTURE SCREW | STEEL |
| NOMINAL SIZE | P1 | P2 | D | L | L1 | H | ||
| P1XDXP2 | ||||||||
| 1/2'' | 13 | 1/2'' | PT1/2'' | PT1/2'' | 13 | 32 | 52 | 162 |
| 3/4'' | 19 | 3/4'' | PT3/4'' | PT3/4'' | 19 | 36 | 58 | 172 |
| 1'' | 25 | 1'' | PT1'' | PT1'' | 25 | 49 | 71 | 204 |
| 11/4'' | 32 | 11/4'' | PT1-1/4'' | PT1-1/4'' | 32 | 52 | 83 | 223 |
| 11/2'' | 38 | 11/2'' | PT1-1/2'' | PT1-1/2'' | 38 | 58 | 252 | |
| 2'' | 50 | 2'' | PT2'' | PT2'' | 50 | 65 | 103 | 278 |
| NO. | 部件名称 PART NAME | 材料 MATERIAL |
| 1 | 阀体 BODY | CASTING-BRONZE |
| 2 | 阀座 SEAT | FORGING-BRASS |
| 3 | 轴杆 SPINDLE | BRASS |
| 4 | 弹簧座 SPFING SEAT | BRASS |
| 5 | 阀瓣 DISC | FORGING-BRASS |
| 6 | 阀盖 CAP | CASTING-BRONZE |
| 7 | 弹簧 SPRING | STEEL |
| 8 | 调节螺母 ADJUST NUT | BRASS |
| 9 | 调节螺丝 ADJUST SCREW | BRASS |
| 10 | 垫片 WASHER | ASBESTOS |
| NOMINAL SIZE | P1 | P2 | D | L | L1 | H | ||
| P1XDXP2 | ||||||||
| 1/2'' | 13 | 1/2'' | PT1/2'' | PT1/2'' | 13 | 32 | 52 | 140 |
| 3/4'' | 19 | 3/4'' | PT3/4'' | PT3/4'' | 19 | 36 | 58 | 150 |
| 1'' | 25 | 1'' | PT1'' | PT1'' | 25 | 49 | 71 | 185 |
| 11/4'' | 32 | 11/4'' | PT1-1/4'' | PT1-1/4'' | 32 | 52 | 83 | 208 |
| 11/2'' | 38 | 11/2'' | PT1-1/2'' | PT1-1/2'' | 38 | 58 | 96 | 236 |
| 2'' | 50 | 2'' | PT2'' | PT2'' | 50 | 65 | 103 | 265 |
